Intercept®

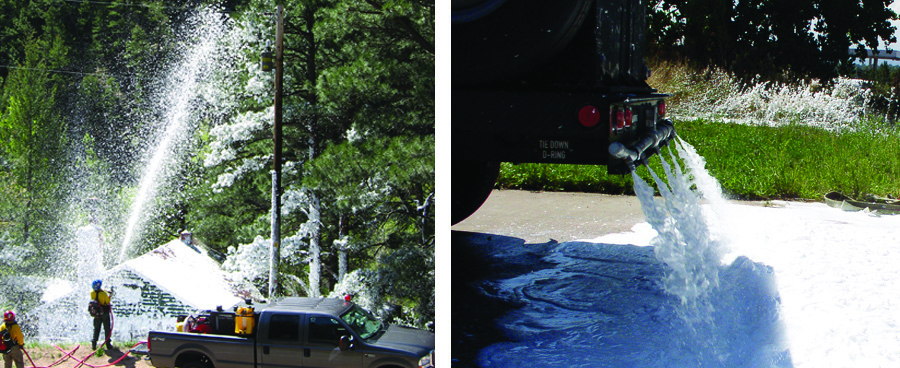

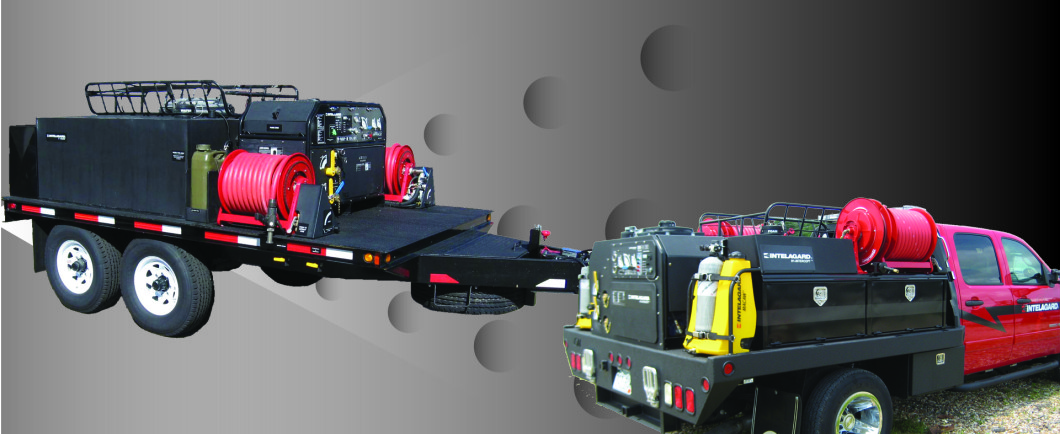

The Intercept is Intelagard’s Compressed Air Foamvehicle-transportable skid system that can be configured to be powered by either diesel or gasoline. This CAFS can be configured for fire applications with an integral foam cell in one tank (H1), or with Intelagard’s patented binary tanks (F1) for optimal use with multiple component decontamination formulas such as EasyDECON DF200. This compressor powered skid also functions as mobile air compressor station for maintenance and service operations, and for the filling of inflatable shelters, showers and bladders in the field. The Intercept can be configured with tanks ranging from 100 to 500 gallons (378L to 1892L), transported using a truck or trailer, and removed for storage. With expansion ratios of up to 20:1 and a projection distance of over 100 ft (30.5 m), this system offers huge capabilities in a small package.
The Intercept is fully draft compatible, enabling it to feed directly from bulk containment of firefighting and decontamination solutions or other resources for efficient long term operations. The powerful self-priming 1-inch (2.5 cm) pump system is capable of up to 70 feet (21.3 m) of vertical fluid lift. Optional spray bar and remote controlled foam monitor turn this CAFS into a powerful all-around emergency response tool.
Features:
- Brass/stainless steel plumbing and components
- 2 line discharge
- Baffled tank(s) reduce load shift
- Drafting capability; 20 ft (6.1 m) lift
- Adjustable automatic proportioning suitable for many formulations
- Visual tank level sight tubes
- Foam cell for reclamation of unused formula concentrate
- Customizable tank(s) and skid size
- Mounted on durable polypropylene skid platform
Specifications:

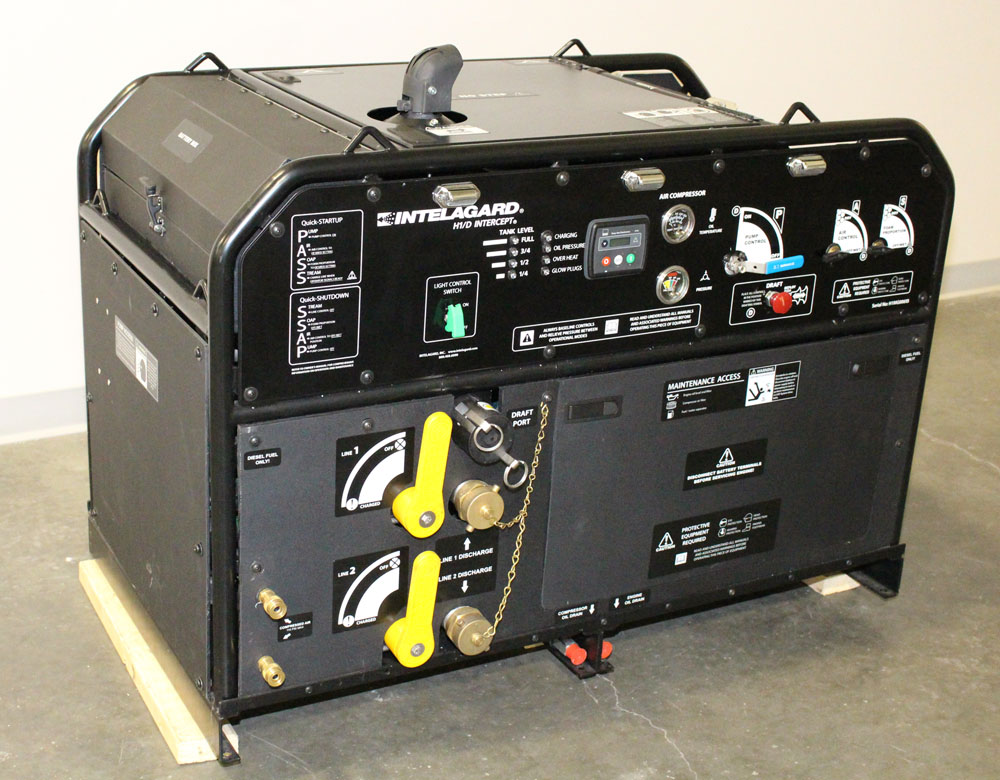

Power Unit (Available separately)
- Dimensions: 48 in (122 cm) L x 26.5 in (67.3 cm) W x 38.25 in (97.2 cm) H
- Weight Dry (w/o fluids): ~751.5 lbs (341 kg)
- Diesel Engine: 23.5 HP Internal combustion engine (gasoline engine available)
- Compressor: Rotary screw, capable of ~65 CFM
Pump
- Flow: ~90 gal (340.7 L) max per minute*
- Pressure: ~100 psi (6.9 BAR), 110 psi (7.6 BAR) max
*When working in conjunction with the CAFs components, pump flow is reduced by as much as 35%
Air Injection:
- Adjustable by mechanical valve, 90° rotation, wet/dry setting
Standard System Performance Characteristics
- Foam Expansion: 1:1 – ~20:1**
- Output Stream: ~90 gpm (341 (Lpm) wet and ~1800 gpm (6813 Lpm) dry
- Projection Distance: Up to ~60 ft (24.4 m)**
- Zero-Prime Drafting: ~20 ft (6.1m) vertical pull
- Hydrant Fill Capability: Yes
**Depending on foam, hose, nozzle and settings
Water/Fluid Tank Capacity:
- 100 gal (378.5 L) to 500 gal (1892.7 L)
- 1000 gal (3785.4 L) tanks are available on request but require significant payload capacity for the Prime Mover or a separate trailer
- Foam cell is 10% of fluid tank size
Options/Accessories:
- Diesel (H1/D) and gasoline (H1/G) powered units available
- Macaw Backpack mounts
- SwiftCAF precision decontamination add-on kit
- Dual non-collapsible hose configuration
- Electric or pneumatic rewind hose reel
- Customizable flat lay fire hose and containment compartments
- Extensive nozzle selection
- Foam formulas
