Merlin® MP

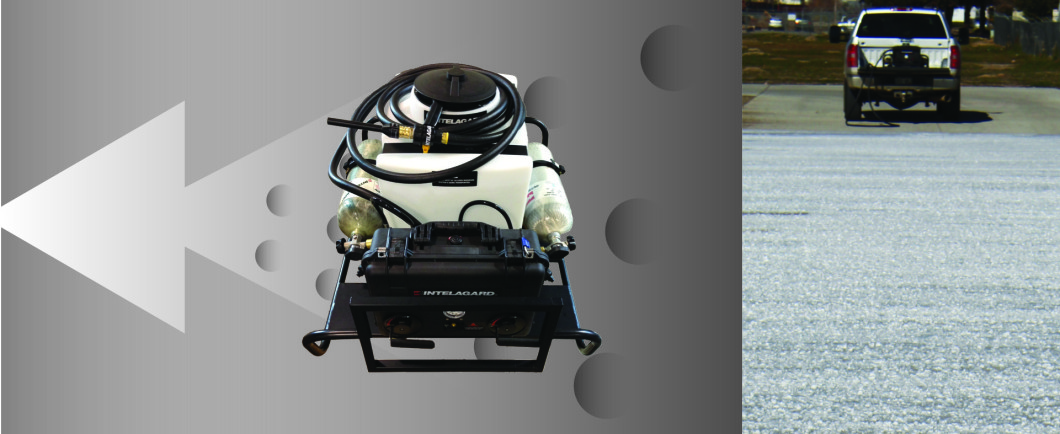

First responders can now add another Intelagard Compressed Air Foam System to their foam deployment tool box – the Merlin MP (Man Portable). Compact performance, power and reliability define this system, designed as a highly mobile, quick attack unit for use in hard to access places.

The Merlin MP can be used in its self-contained configuration powered by dual air cylinders, or attached to a compressor and bulk fluid storage for extended use. Its powerful drafting capability expands resources that can be tailored for a wide array of rapid response needs. It includes a fully plumbed 26 gallon (98.4 L) fluid tank, two 4500 psi (6.9 BAR) carbon wrapped air cylinders, hose and trigger handset carried in a tubular steel basket.


  • Quick release CAF power module and plumbing connections
  • Adjustable air injection
  • Air compressor port
  • Drafting capability
  • Rugged utility frame
  • Lightweight, high performance
  • Simple, fast activation and operation
  • Minimal maintenance
  • Fully self-contained


  • System Dimensions (14 gallon system*): 39 in (99.1 cm) L x 31 in (78.7 cm) W x 14.5 in (36.8 cm) H
  • Operating Pressure: 100 psi (6.9 BAR)
  • Liquid Capacity: 26 gal (98.5 L)
  • Projection Distance: Up to ~45 ft (13.7 m)*
  • Foam Expansion: Up to 35:1*
  • System Weight Dry (w/o cylinders): ~87 lbs (40 kg)
  • System Weight Full (w/ full air cylinder): ~330 lbs (150 kg)
  • Standard Hose: 20 ft (6.1 m), .75 in (1.9 cm)
  • Handset/Nozzle: Intelagard High Performance Handset with 12 mm Smooth Bore

*Depending on foam, hose, settings and nozzle used


  • Wide selection of nozzles
  • Foam formulas
  • Custom handset diameters and hose lengths
  • 4500 psi (310.26 BAR) air cylinder
  • Drafting hose
