Merlin® Handcart

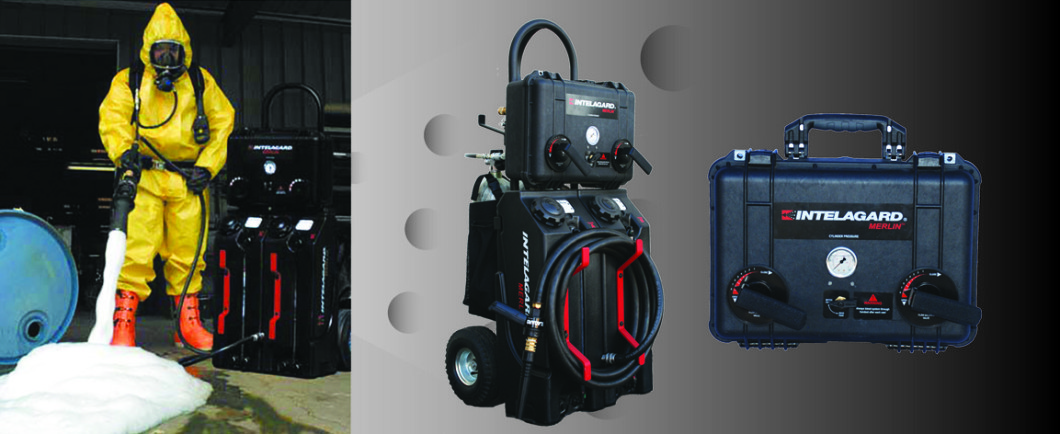

The Merlin represents a new standard for portable, self-contained CAFS. Its patented binary tank configuration, removable control module and drafting capability are just a few of the distinctive characteristics that set the Merlin apart from other emergency response tools. This system provides rapid deployment capabilities and ease of operation, and can be operated as a fully independent unit or in conjunction with auxiliary power sources and bulk agent storage.

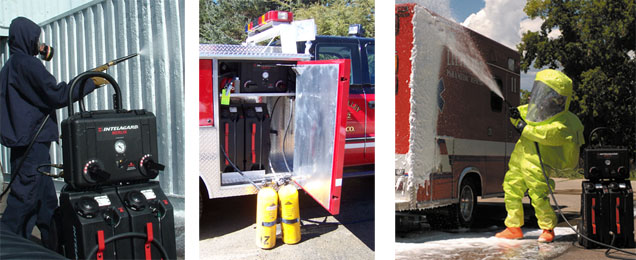

The Merlin is an ideal portable rapid response tool that can be used with multiple part decontamination formulas such as EasyDECON® DF200 or batch-mixed formulas for fire suppression, exposure protection, hazmat cleanup and vapor suppression. Compact size, versatile functionality and dependability combine to make it the perfect choice in CAFS.

Features:

  • Portable and fully independent of umbilical support
  • Removable CAF control module
  • Versatile operation, ergonomic controls
  • Drafting capable and compressor-ready for extended use
  • Flow balancing, simple positive adjustments
  • Drain plugs for easy cleaning
  • Visual fill level monitoring
  • Variable foam composition between twin tanks

Specifications:

  • System Dimensions: 49.25 in (125 cm) H x 19.25 in (48.9 cm) W x 23.75 in (60.3 cm)D
  • Operating Pressure: ~100 psi (6.9 Bar)
  • Liquid Capacity: 14 gal (53 L)
  • Projection Distance: Up to ~ 45 ft (13.7 m)*
  • Foam Expansion: Up to ~35:1*
  • System Weight Dry (w/o cylinder): ~80.7 lbs (36.6 kg)
    • empty air cylinder adds 13 lb (5.9 kg)
  • System Weight Full: ~224 lbs (101.6 kg)
  • Standard Hose: 20 ft (6.1 m); 3/4 in (1.9 cm) diameter
  • Nozzle: Intelagard Smooth Bore

*Depending on foam, hose and nozzle used

Options/Accessories:

  • Wide selection of nozzles
  • Foam formulas
  • Solid cart wheels
  • Custom handset diameters and hose lengths
  • 4500 psi (310.26 Bar) carbon wrapped air cylinder (CGA and DIN available)
  • Drafting hose
