SwiftRunner® Series II

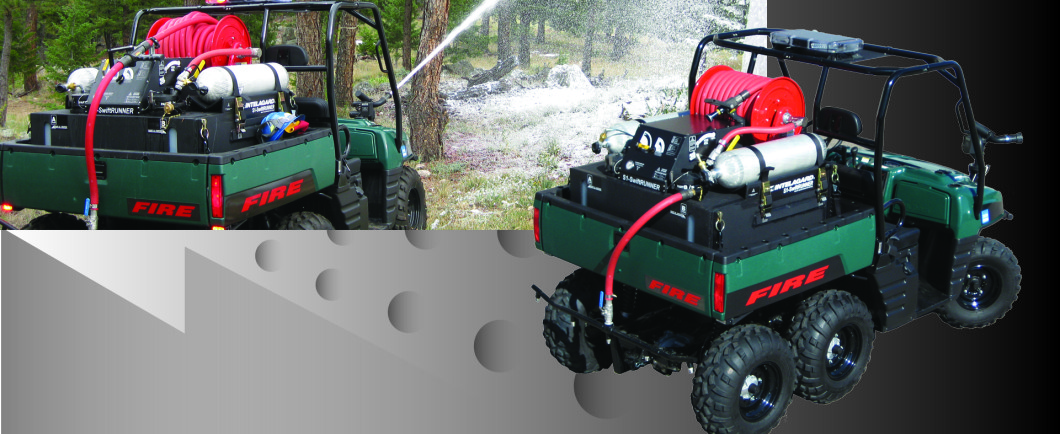

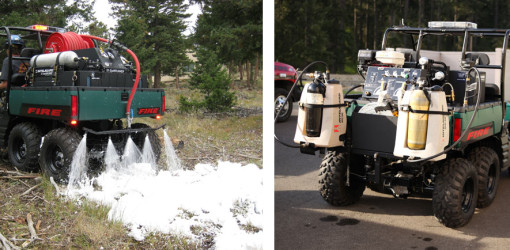

The SwiftRunner SRII Compressed Air Foam System turns your utility terrain vehicle, truck or trailer into a powerful and highly mobile fire fighting, remediation and decontamination tool. The compact, durable and corrosion resistant polypropylene tank and skid makes this system an easy slip-in unit for a wide range of vehicular platforms. The standard system is powered by a 14 HP gasoline engine (diesel configuration available). Optional high pressure air power increases the SwiftRunner’s adaptability.

The SwiftRunner’s fluid tank is internally baffled to decrease fluid shift for optimal vehicle stability on uneven terrain. Its rugged air pump is capable of operating with saltwater and gray water, and can pass sand and grit up to a quarter inch. Adjustable air injection allows the user to select foam expansion tailored for mission-specific response. Drafting and 35 ft (10.7 m) vertical lift capabilities add to the SwiftRunner SRII’s impressive scope of performance.

Features:

  • Easy to use with minimal training for safe and effective operation
  • Binary tank option for EasyDECON DF200 use
  • Compressor driven
  • Electric start
  • Multipurpose – fire, decon, hazmat
  • High pressure air powering option
  • Skid mounted for easy slip in and out, use on multiple vehicles, trailers
  • Adjustable air injection for wetter/drier foam
  • Baffled water tank reduces load shift

Specifications:

  • System dimensions: 50 in L x 43 in W x 30 in H (1.27 m x 1.09 m x .76 m)
  • Operating Pressure:  100 psi (6.9 BAR)
  • Liquid capacity: ~ 50 gal (189.3 L)
  • Compressor: 30 CFM
  • Engine: 14 HP gasoline, single slant cylinder, air cooled standard (diesel configuration available)
  • Projection Distance:  Up to ~45 ft (13.7 m)*
  • Foam Expansion:  Up to 35:1*
  • System Weight Dry: ~ 500 lbs (227 kg)
  • System Weight Full: ~ 920 lbs (417 kg)
  • Standard Hose:  50 ft (15.24 m), .75 in (1.9 cm) ID
  • Standard Nozzle:  12mm Intelagard Smooth Bore
  • Handset: Intelagard High Performance Handset

*Dependent upon foam, hose, nozzle and settings

Options/Accessories:

  • Optional hose selection
  • Foam formulas
  • Fan spray / piercing tip nozzle
  • 45oo psi (310 BAR) air cylinder
